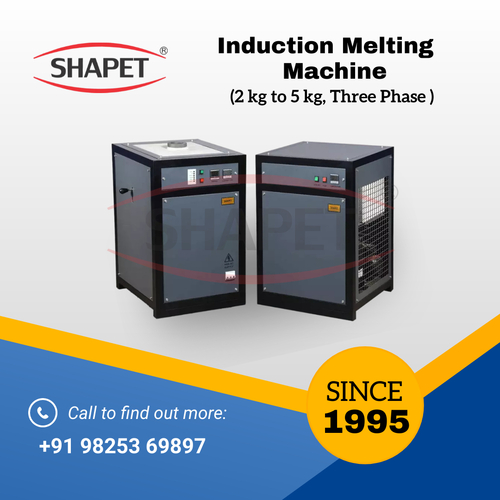

Induction Based Gold Melting Furnace 5 Kg. In Three Phase

Induction Based Gold Melting Furnace 5 Kg. In Three Phase
Induction Based Gold Melting Furnace 5 Kg. In Three Phase
Send Inquiry
Product Code : GMF5T
Brand Name : SHAPET
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces,
  • Price Range
  • 300000.00 - 1000000.00 INR
Product Specifications
  • Feature
  • Heat and power loss reduced.
  • Size
  • Approx 56 x 51 x 82 (cms)
  • Condition
  • New
  • Type
  • Induction Based
  • Usage
  • Melting Furnace
  • Power
  • 10 Watt (w)
  • Voltage
  • 415 Volt (v)
  • Weight
  • 79
  • Application
  • Alloy Manufacturers, Chain Manufacturers
Product Description
Induction Based Gold Melting 8 Kg With Tilting Unit

Useful for :

High volume jewellery manufacturers, Alloy manufacturers, Chain manufacturers, Metal processing refineries, Useful for coins and bar manufacturers.

Product Features:
  • Perfect Homogeneous mixing due to auto stirring effect for increased productivity and perfect alloying.
  • Economical, Efficient and Simple in Operation.
  • Energy saving flameless device and also 80% income tax depreciable.
  • Does not affect room temperature.
  • Heat and power loss reduced.
  • Works on 3 Phase connection.
  • Provides controlled pouring of metal due to manual tilting unit.
  • Metal can be added easily during the melting process for continuous melting operation
Technical Specifications:
  • Technology: IGBT Based.
  • Power Supply & Voltage: 3 Phase 440 Volts A/C
  • Absorbed Power: 10 KW/H.
  • Capacity of Crucible: 8 Kgs. Gold.
  • Maximum Temperature & Type: 12000 Degrees, "K" Type.
  • Melting Time: 10 to 12 Minutes.
  • Cooling Water Temperature: 350 Degrees Max.
  • Machine Weight: Approx 79 Kgs.
  • Chiller Weight: Approx 130.5 Kgs.
  • Tilting Weight: Approx 60 kgs.
  • Machine Size (LxWxH): Approx 80 x 60 x 113 (cms).
  • Chiller Size (LxWxH): Approx 84 x 59 x 105 (cms).
  • Tilting Size (LxWxH): Approx 62x 62 x 92 (cms).
