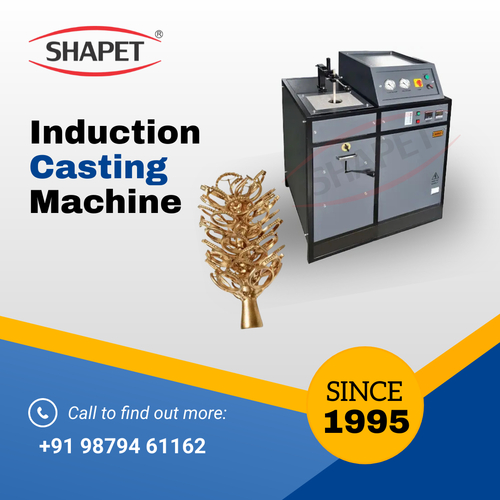

Induction Based Imitation Casting Furnace

Induction Based Imitation Casting Furnace

300000.00 - 1000000.00 INR/Unit

Get a Price/Quote

Product Details:

Product Type induction Based Casting
General Use Gold/Silver Casting
Computerized No
Automatic Yes
Control System Frequency Speed Control
Cooling Mode Water Cooling
Working Temperature 1150 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Induction Based Imitation Casting Furnace Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 300000.00 - 1000000.00 INR/Unit

Induction Based Imitation Casting Furnace Product Specifications

Cooling Mode Water Cooling
Color Gray
General Use Gold/Silver Casting
Warranty 1 Year
Computerized No
Wire Dimension 3 Core
Automatic Yes
Product Type induction Based Casting
Working Temperature 1150 Celsius (oC)
Feature Simple Control High Performance ECO Friendly High Efficiency Lower Energy Consumption Low Noise
Control System Frequency Speed Control
Power Supply 3 Phase 440 Volts A/C

Induction Based Imitation Casting Furnace Trade Information

Supply Ability 10 Unit Per Day
Delivery Time 1 Week
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

Induction Based Imitation Casting In 3 Phase

Useful for:

Useful For Small Size Jewellery , Making Pre-studded Jewellery With Stone Setting , Small scale Quantity Jewellery Manufacturers .

Product Features:

Accurate Casting Temperature Controlling.
Advantage of Vacuum Casting hence Optimal Results.
All Safety Precautions Provided.
Consistent Quality Of Casting.
Creative And Innovative Technology.
Instant Heating With finger tip Controls.
Less oxidation Casting Due to Bottom pouring Technology.
Reduced Casting Expenses.
Useful for both Casting & Melting.
Safe, Fast , Economical, Efficient and Simple in Operation.
Energy saving flameless device and also 80% income tax depreciable.
Heat and power loss reduced.

Technical Specifications:

Technology: IGBT Based.

Power Supply & Voltage: Three Phase 415 Volts A/C

Absorbed Power: 5 KW/H.

Capacity of Crucible: 500 Gms. Imitation.

Maximum Temperature & Type: 1200⁰Degrees, "K" Type.

Melting Time: 6 to 8 Minutes.

Cooling Water Temperature: 20⁰ to 35⁰ degree.

Machine & Chiller Weight: Approx 145 Kgs.

Pump Weight: Approx 47 kgs.

Machine Size (LxWxH): Approx 82 x 61 x 103 (cms).

Chiller Size (LxWxH): Approx 56 x 51 x 81 (cms).

pump Size (LxWxH): Approx 59 x 18 x 28 (cms).
