Copper Melting Furnace with Tilting Unit Copper Melting Furnace with Tilting Unit Copper Melting Furnace with Tilting Unit

Copper Melting Furnace with Tilting Unit

300000.00 - 500000.00 INR/Unit

Product Details:

  • Feature Perfect Homogeneous mixing due to auto stirring effect for increased productivity and perfect alloying
  • Product Type Induction Based Melting
  • Color Blue
  • Height 1130 Millimeter (mm)
  • Usage Gold/Silver Melting
  • Width 840 Millimeter (mm)
  • Weight 145
  • Click to view more
X

Price And Quantity

  • 300000.00 - 500000.00 INR/Unit
  • 1 Unit

Product Specifications

  • Perfect Homogeneous mixing due to auto stirring effect for increased productivity and perfect alloying
  • 840 Millimeter (mm)
  • Electricity
  • Induction Based Melting
  • Blue
  • New
  • 1130 Millimeter (mm)
  • Gold/Silver Melting
  • 590 Millimeter (mm)
  • 145

Trade Information

  • Kandla Port
  • 10 Unit Per Week
  • 1 Week
  • Contact us for information regarding our sample policy
  • All India

Product Description

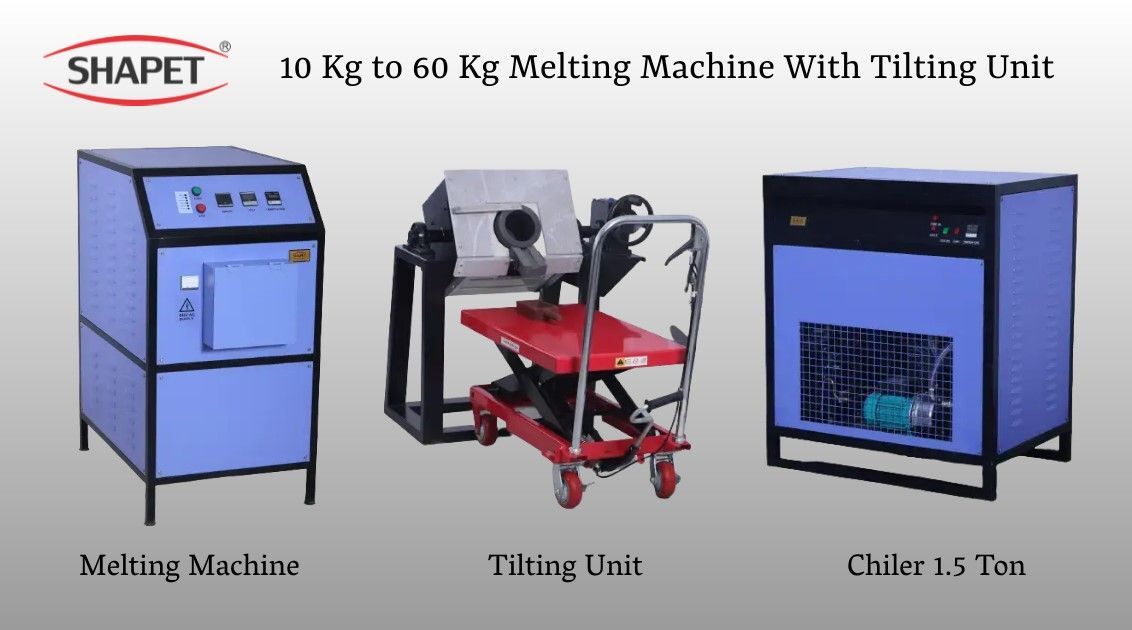

Induction Based Copper Melting Furnace 5 Kg. With Tilting Unit

Useful for:


High volume Industrial manufacturers, wire manufactures , Scrap Melting etc.


Product Features:


  • Perfect Homogeneous mixing due to auto stirring effect for increased productivity and perfect alloying.
  • Economical, Efficient and Simple in Operation.
  • Energy saving flameless device and also 80% income tax depreciable.
  • Does not affect room temperature.
  • Heat and power loss reduced.
  • Works on 3 Phase connection.
  • Provides controlled pouring of metal due to manual tilting unit.
  • Metal can be added easily during the melting process for continuous melting operation.
Technical Specifications:

  • Technology: IGBT Based.
  • Power Supply & Voltage: 3 Phase 440 Volts A/C
  • Absorbed Power: 12 KW/H.
  • Capacity of Crucible: 5 Kgs. Copper.
  • Maximum Temperature & Type: 12000 Degrees, "K" Type.
  • Melting Time: 10 to 12 Minutes.
  • Cooling Water Temperature: 350 Degrees Max.
  • Machine Weight: Approx 79 Kgs.
  • Chiller Weight: Approx 130.5 Kgs.
  • Tilting Weight: Approx 60 kgs.
  • Machine Size (LxWxH): Approx 80 x 60 x 113 (cms).
  • Chiller Size (LxWxH): Approx 84 x 59 x 105 (cms).
  • Tilting Size (LxWxH): Approx 62x 62 x 92 (cms).
